HE5000mini-1/2 person 2.0ATA Multiplace Hyperbaric Chamber

HE5000mini-1/2 person 2.0ATA Multiplace Hyperbaric Chamber

  • Product size: 2070*1200*1753mm, large space for 1-2 people.
  • Multiplace type, 1-seater, 2-seater, and multiple layouts can be customized.
  • The chamber supports selectable operating pressures of 1.3 ATA, 1.5 ATA,2.0 ATA.
  • Large linear sliding doors for easy access to help alleviate feelings of claustrophobia.
  • Interphone system for two-way communication.
  • Automatic air pressure control system.
  • Automatic digital display technology to show data like pressure, purity, humidity and temperature.

HE5000mini-1/2 person 2.0ATA Multiplace Hyperbaric Chamber

Macy-Pan HE5000mini hyperbaric chamber 2.0ata stands as an advanced and professionally designed pressurized enclosure tailored for delivering hyperbaric oxygen therapy (HBOT).

HE5000mini-1~2 person 2.0ATA Multiplace Hyperbaric Chamber

  • Safe and Easy to Use: Low maintenance and modular design for effortless operation.This system will be integrated with oxygen generators and is much safer to operate than the more expensive systems that require oxygen tanks.
  • Customizable Layouts: Options include bed type, 1-seater, 2-seater, and various other layouts.
  • 1-2 Person Capacity: Connect up to 2 additional oxygen headsets for simultaneous use.
  • Carbon Dioxide Removal: Prevents CO2 build-up for a safer environment.
  • Upgraded Air Conditioning: Adjustable airflow and direction for personalized comfort.
  • Large Linear Sliding Doors: Easy access and helps alleviate claustrophobia.
  • Noiseless pressure relief valve, which significantly reduces the noise generated by high pressure operation by up to 60 decibels.
  • The system is simple to operate and has very low running costs, the only consumption being electricity.
  • Optional Entertainment: TV, Bluetooth stereo, and other accessories can be installed inside.
  • Negative ION UNIT to enhance treatment,used for air cleaning.
  • Air conditioner system: AC FEATURE , Temp. Range(℃): -5~30 (Water).
  • Grounding System: GROUNDING  FEATURE Provide safety in a highly oxygenated environment.

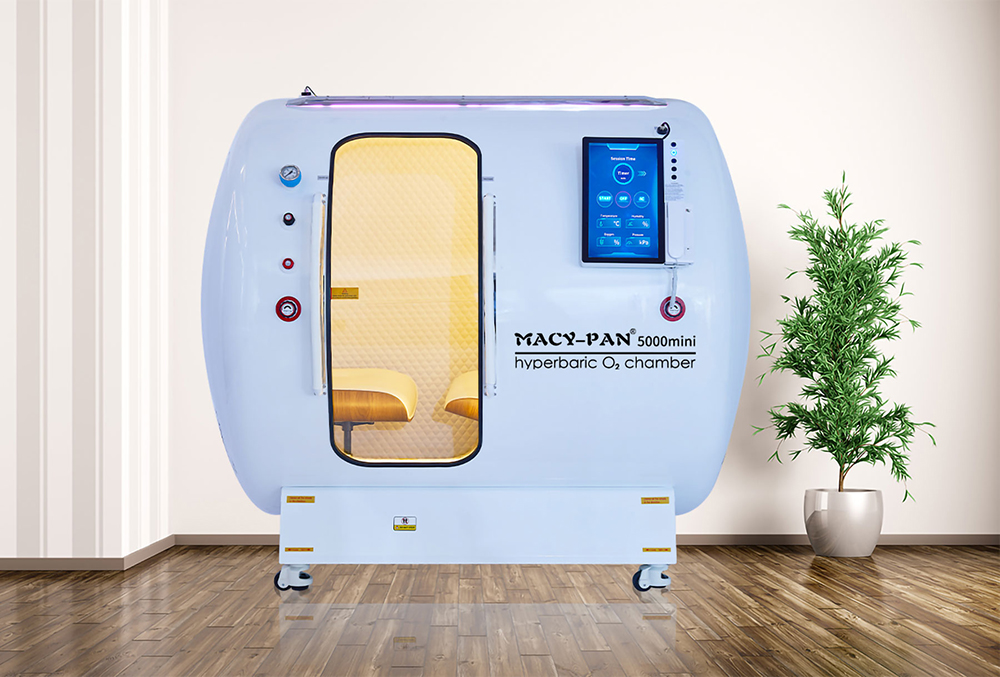

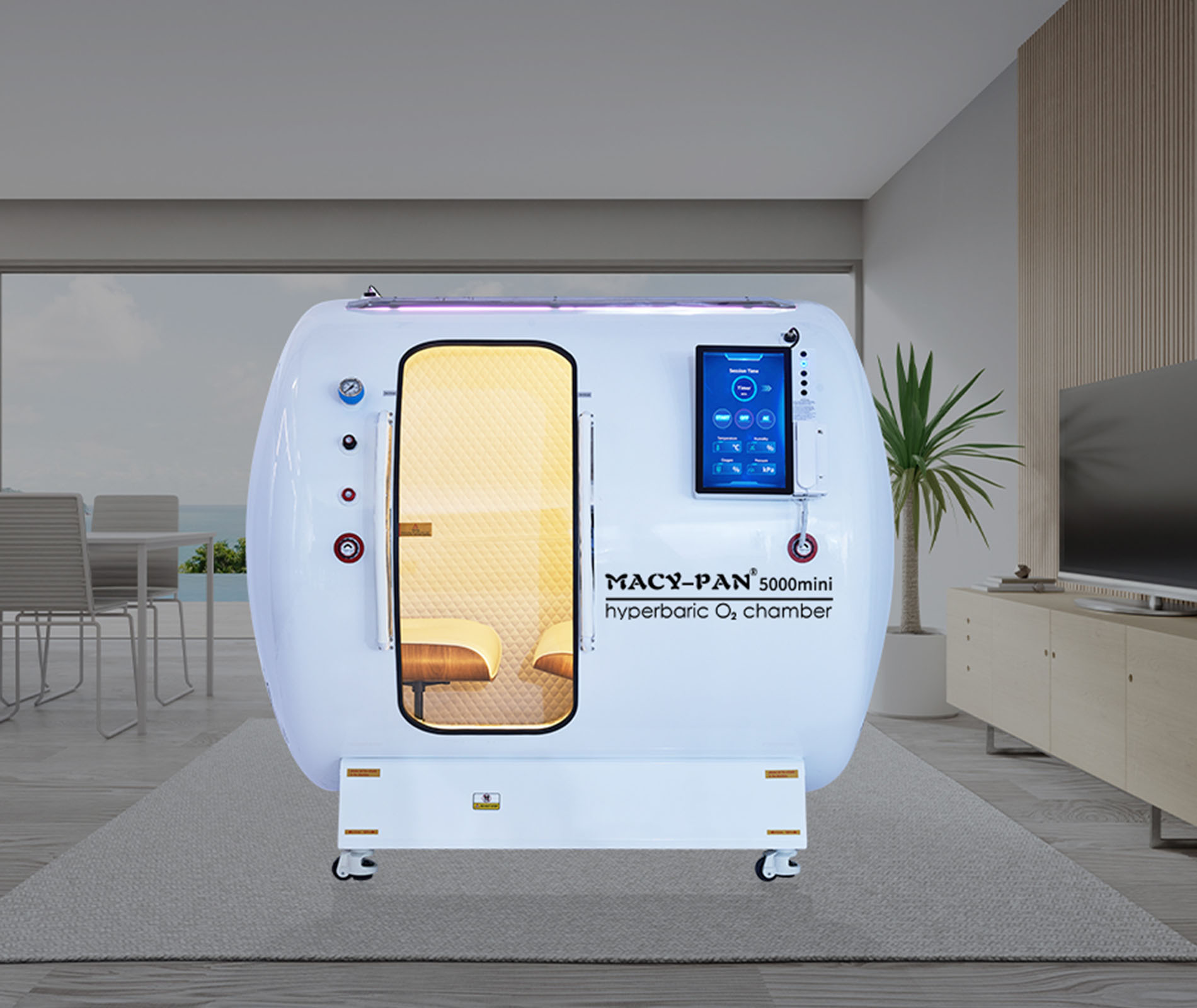

MACYPAN HE5000mini Multiplace hyperbaric oxygen chamber
Product Accessories 1、Chamber Cabin
2、All-in-one machine
3、Oxygen concentrator*2
Certifications/Compliance Standards CE, ISO9001,ISO13485



Accessory Machine Parameters–MACYPAN HE5000mini Multiplace hyperbaric oxygen chamber
Chamber Cabin Dimensions(L*W*H) 2070*1200*1753mm (82inch 47inch 69inch)
Door Size(L*H) 500*1160mm
Net Weight 400kg
Pressure 1.2-2.0ATA(100KPA)
Capacity 1-2people
Material Stainless Steel+ Polycarbonate
Movable Wheels
All-in-one machine Dimension 76*45*65cm
Net Weight 80kg
Air Filter Dual
Voltage 110/220 VAC ±10%
Flow of Air 72 Liter/Min
Flow of Oxygen 10 liter/min
Oxygen concentrator(2 units) Dimension 47*46*69cm
Net Weight 28kg
Oxygen flow 10liter/ min
Oxygen concentration 95%
Power Consumption 480W
Oxygen masks
